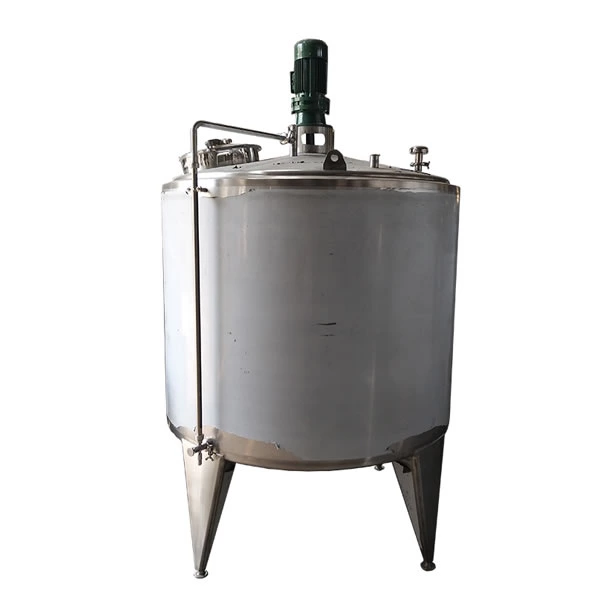

Stainless Steel Electric Heating Double Jacketed Syrups Syrup Tank Mixer

Contacta ahora

Product Application

This beverage mixing tank is used to mixing material like juice, milk, drink, chemicals, cosmetics and so on. It is with electric mixer and the motor could be regulated. It adopts the high quality of SUS304 or SUS316 material and meet with the food grade. It is easy to operate and washing. Also it could be set with automatic CIP spraying head for more easy washing.

Technical Parameters
Volume (L) Dimensions (D*H mm) Total Height (mm) Motor Power (kw)
300 800*610 1350 0.35
500 800*1000 2100 0.55
1000 990*1000 2850 0.75
800 950*1220 3000 0.75
900 1010*1220 3000 1.1
1000 1060*1220 3150 1.35
1500 1160*1500 3350 1.5
2000 1340*1500 3410 2.2
3000 1410*2000 4000 2.2
4000 1620*2000 4250 3
5000 1810*2000 4300 4
More According to customer's requirement

Main Features

  1. Container with high temperature insulation materials, anti-aging polyurethane foam or EPE.
  2. The interface uses the international standard ISO quick chuck, liner made of imported stainless steel SUS316L or SUS304 manufacturing, the inner surface of the mirror-polished to Ra≤0.4m, the outer surface of the cast matte, glossy, matt sandblasted or cold colors.
  3. Agitator seal imported sanitary mechanical seals or magnetic stirring sealed stirring device, stirring speed optional.
  4. The nozzle has a level gauge port (static pressure, capacitive, non-contact, ultrasonic, glass tube), mouth breathing air, thermometer (digital display or dial type), CIP cleaning mouth, depending on the mirror, depending on the light-proof (as endoscopic light integration), SIP sterilization mouth, and out of the liquid inlet and health manhole.
